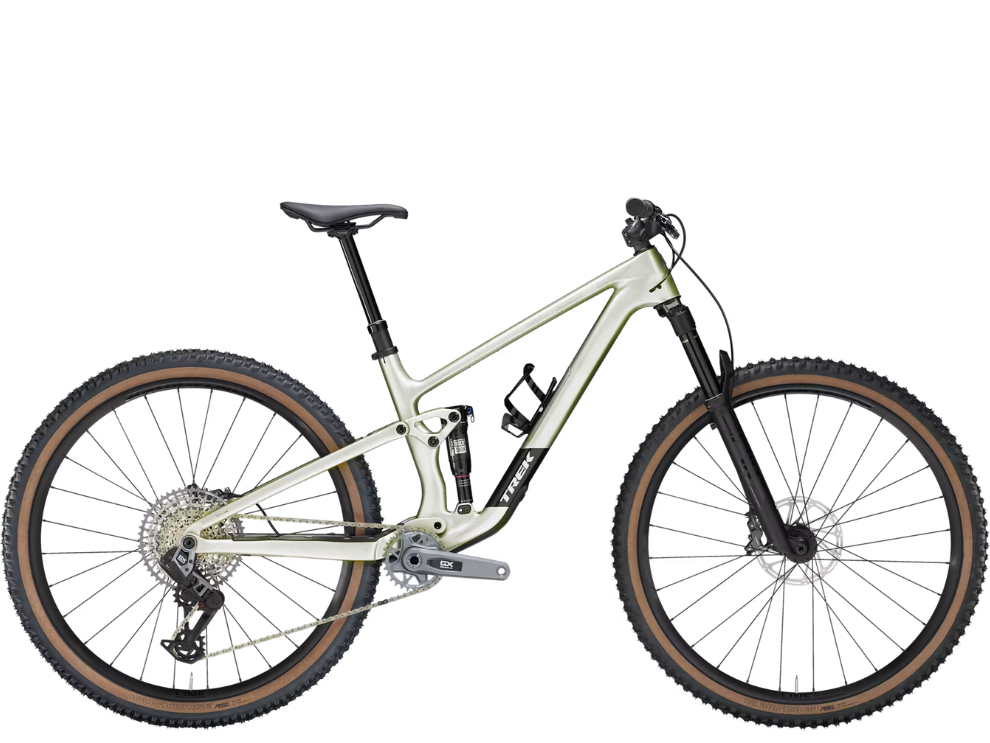

Top Fuel 9.8 GX AXS Gen 4

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame

OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm travel

Fork

RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel

Shock

RockShox Deluxe Ultimate RCT, 185 mm x 50 mm

Wheels

*Wheel front

Size: S

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"

Size: M, ML, L, XL

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

*Wheel rear

Size: S

Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5"

Size: M, ML, L, XL

Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29"

Skewer rear

Bontrager Switch thru-axle, removable lever

*Tyre

Size: S

Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40"

Size: M, ML, L, XL

Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"

Size: M, ML, L, XL

Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tyre size

Frame: 29x2.50", Fork: See manufacturer

E-system

Battery

SRAM AXS battery pack (with charger)

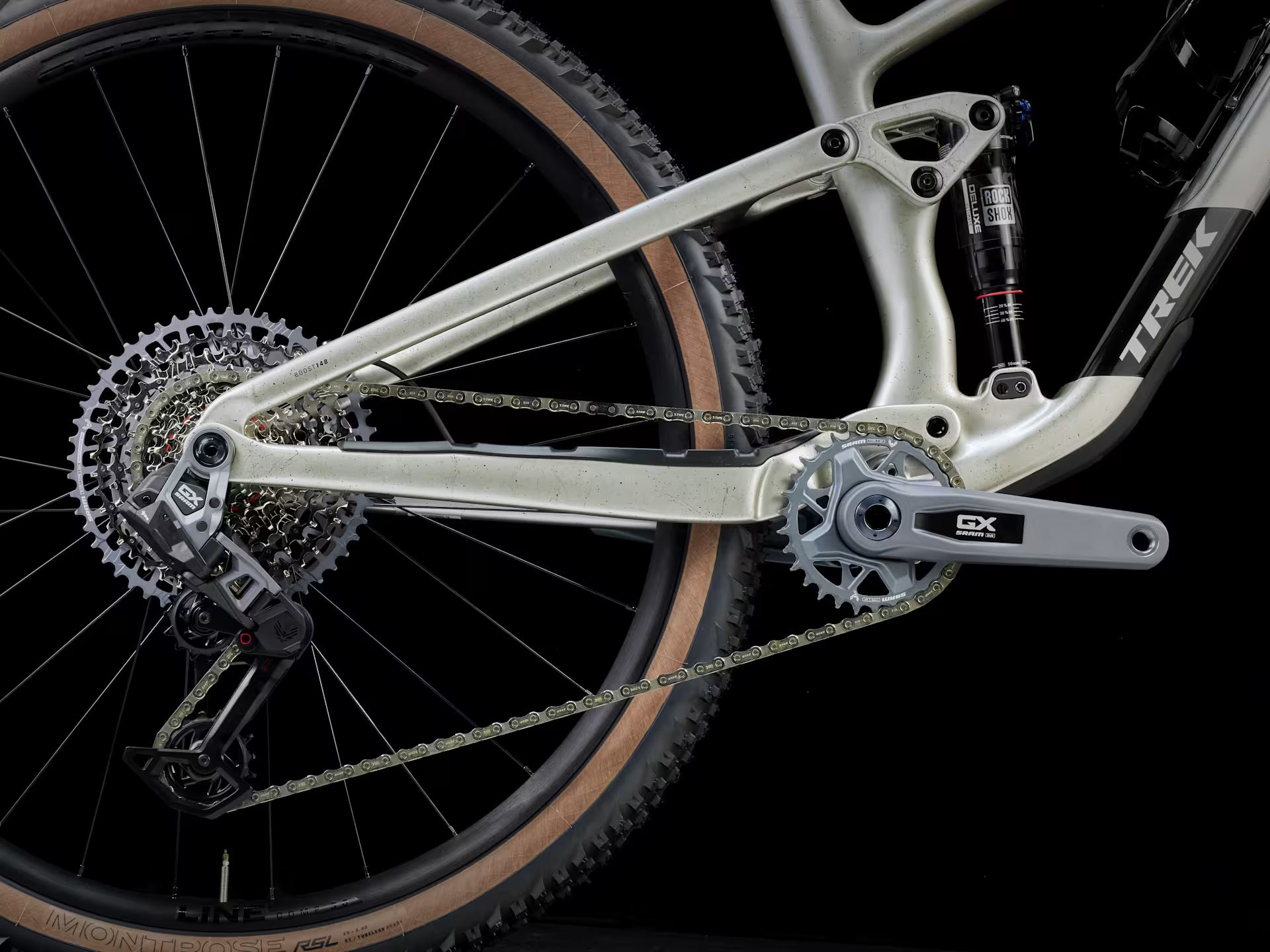

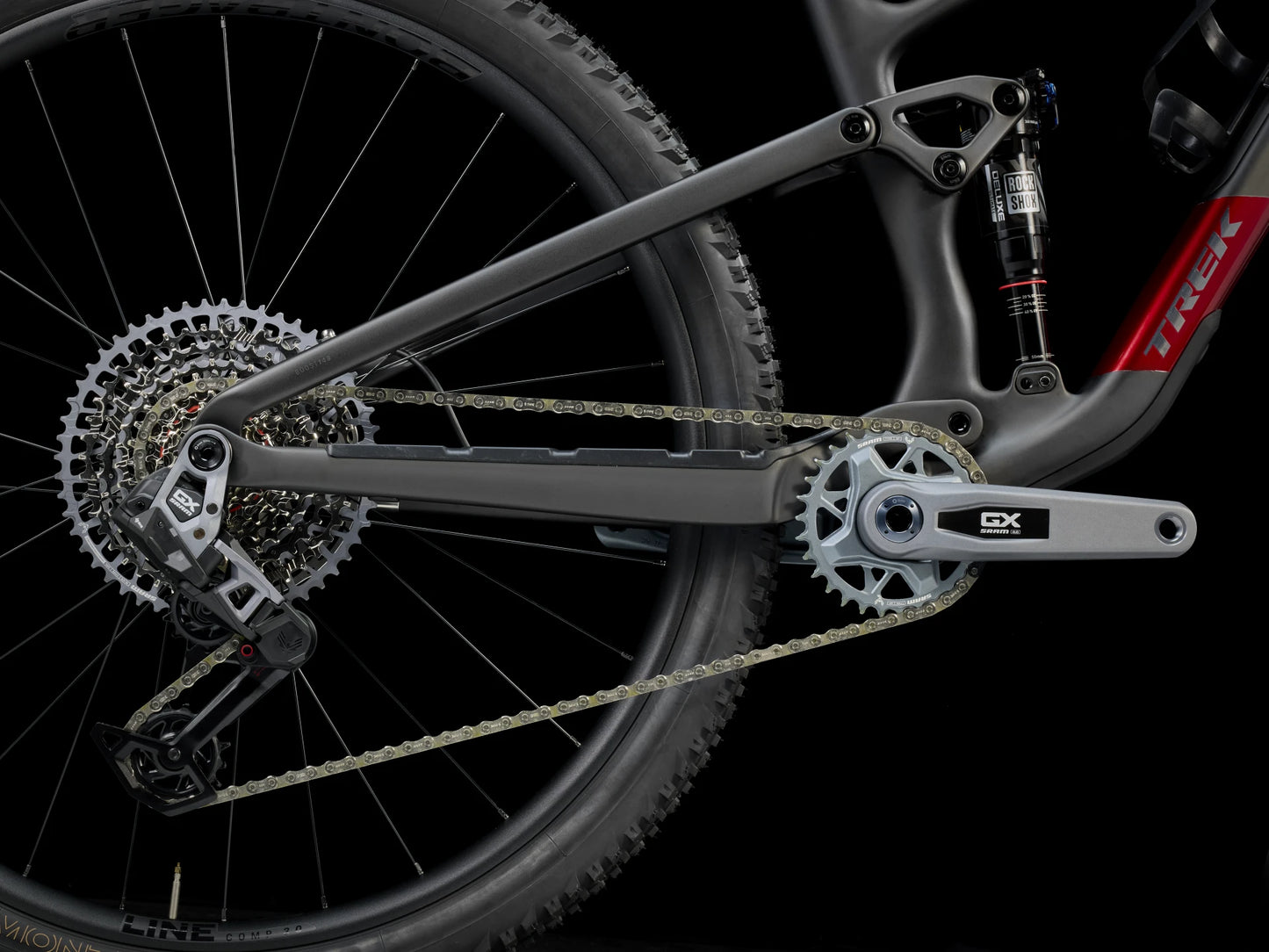

Drivetrain

Shifter

SRAM AXS POD

Rear derailleur

SRAM GX Eagle AXS, T-Type

Crank

SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length

Bottom bracket

SRAM DUB MTB Wide, 73 m, BSA threaded

Cassette

SRAM Eagle XS-1275, T-Type, 10-52, 12-speed

Chain

SRAM GX Eagle, T-Type, 12-speed

Max. chainring size

1x: 34T, min 30T

Components

Saddle

Verse Short Comp, steel rails, 145 mm width

*Seatpost

Size: S

Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length

Size: M, ML, L, XL

Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length

*Handlebar/stem (integrated)

Size: S

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length

Size: M, ML, L, XL

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length

Grips

Bontrager XR Trail Elite, nylon lock-on

Brake

SRAM Level Bronze 4-piston hydraulic disc

Brake rotor

SRAM CentreLine, 6-bolt, round-edge, 180 mm

Rotor size

Max brake rotor sizes – Frame: 200 mm, min 180 mm, Fork: see fork manufacturer

Weight

Weight

M - 13.20 kg / 29.11 lbs (with TLR sealant, no tubes)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
