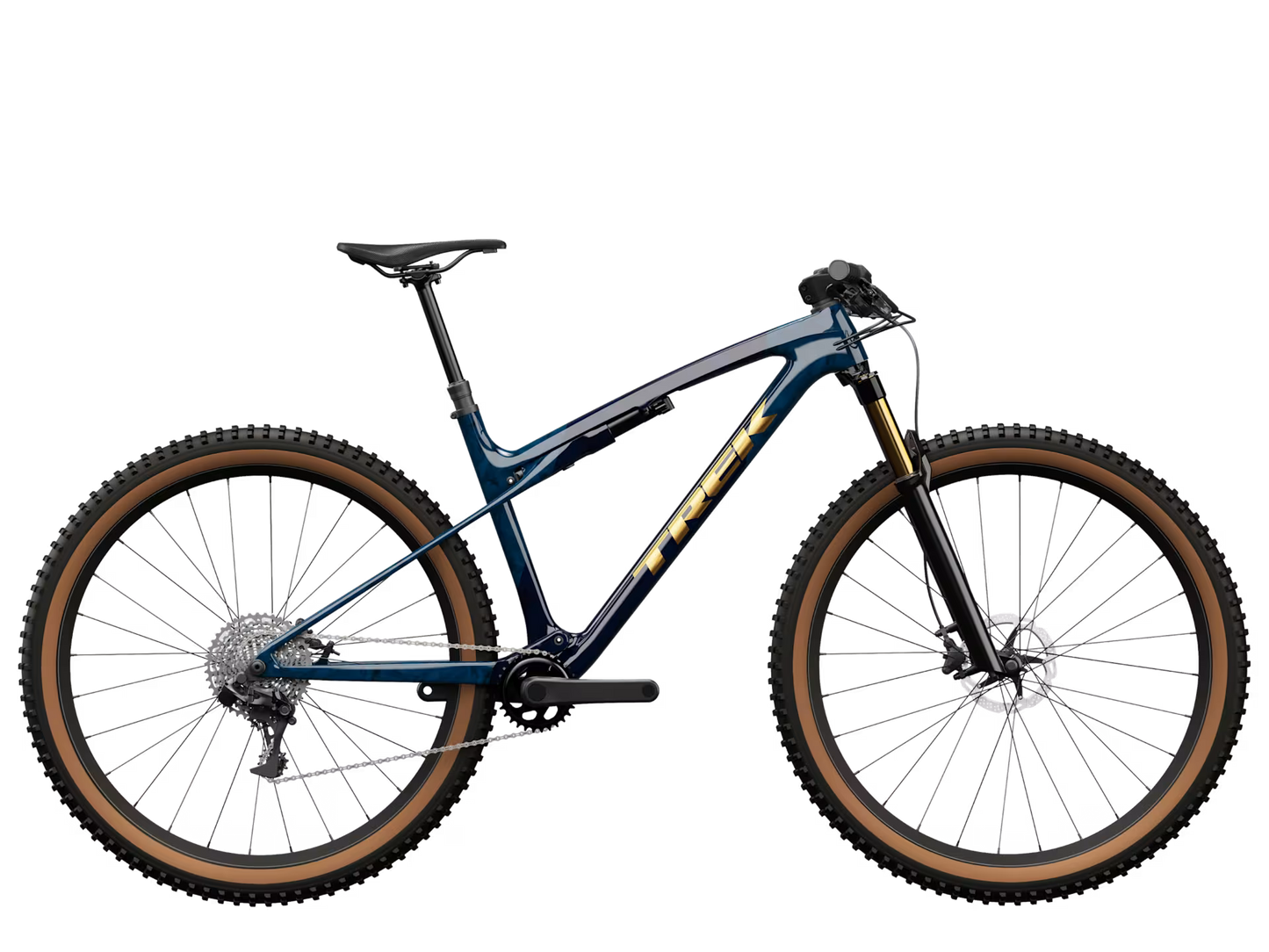

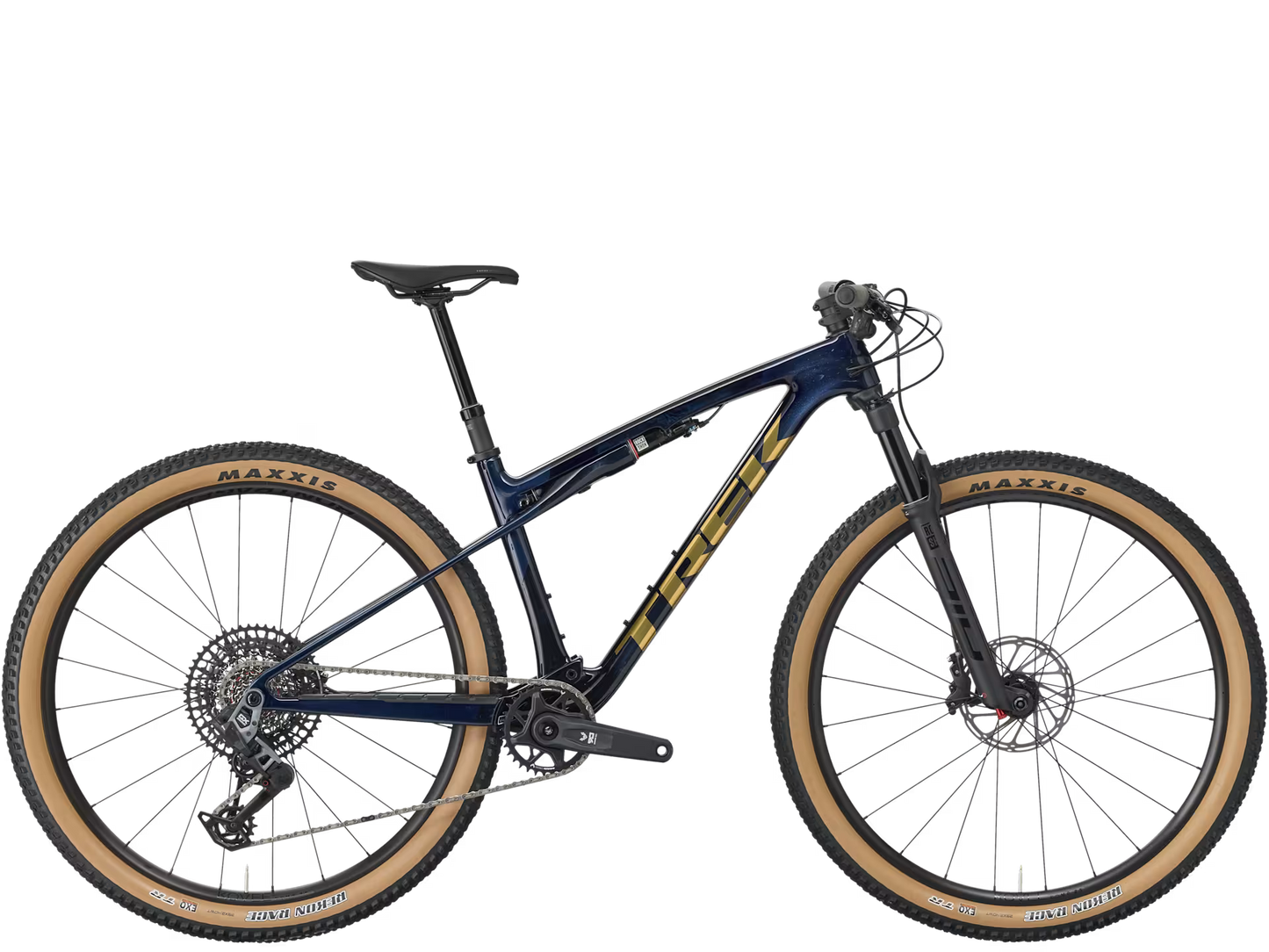

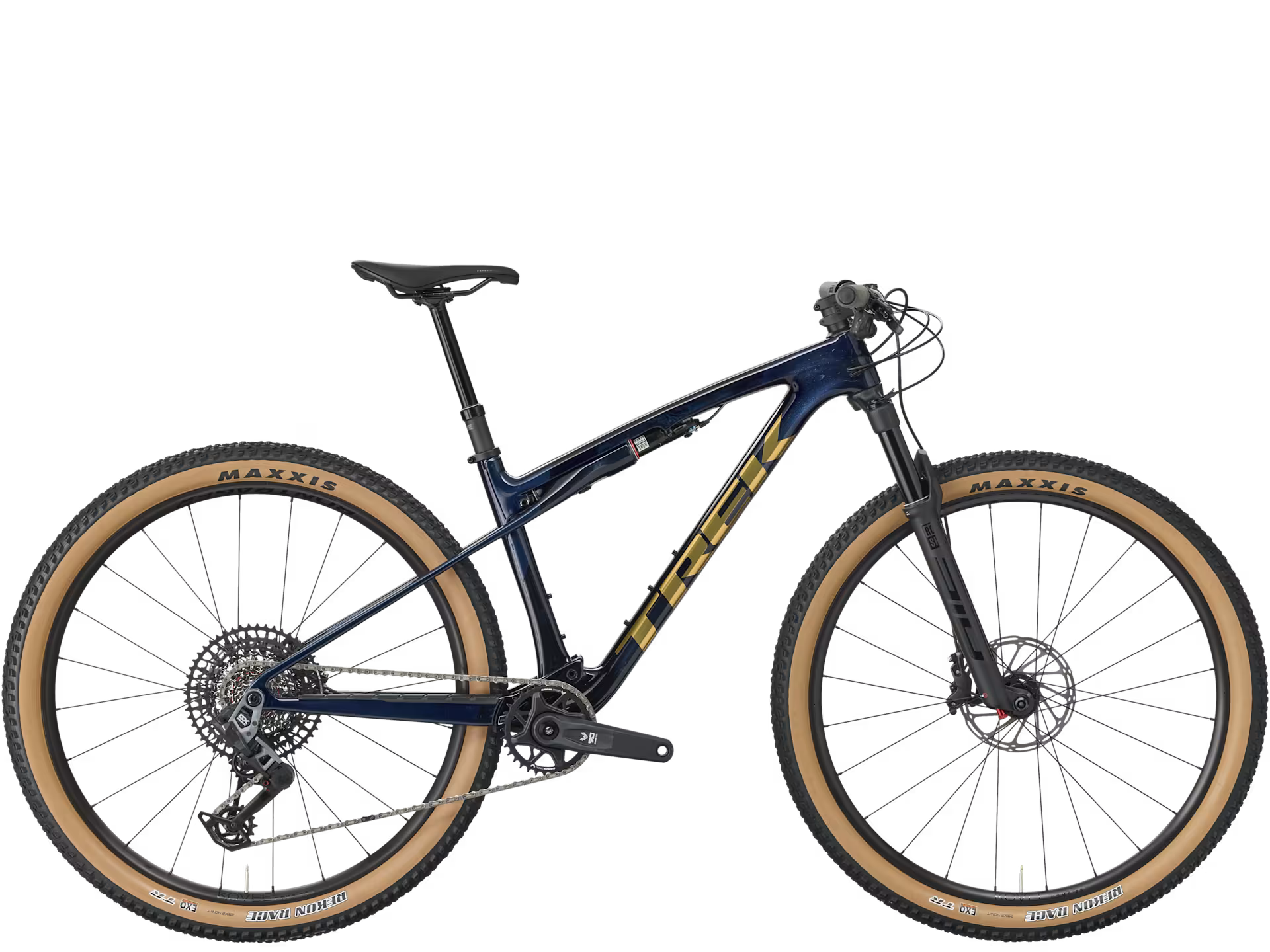

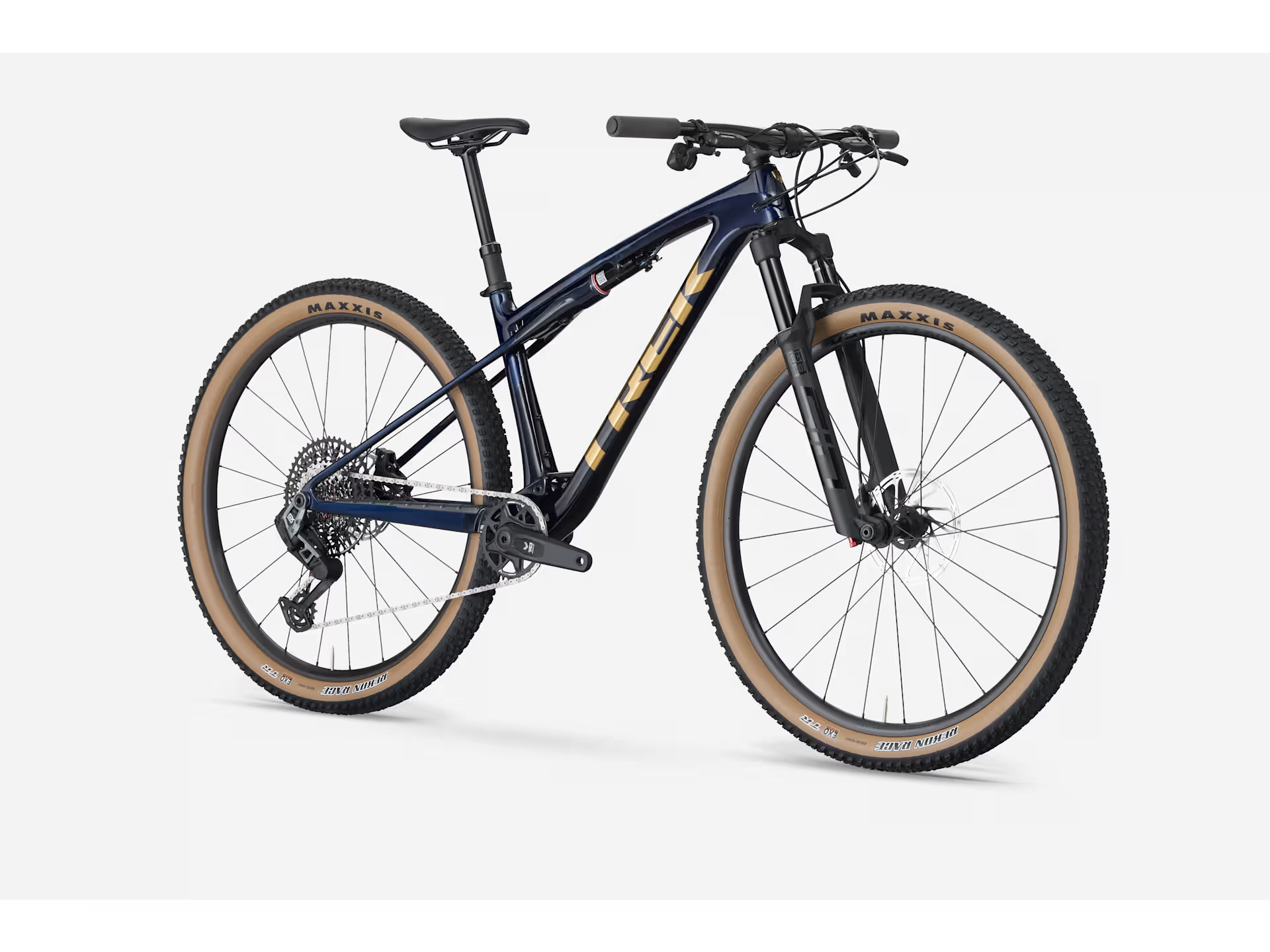

Trek Supercaliber SL 9.7 GX AXS Gen 2

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame

SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel

Fork

RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel

Shock

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper

Wheels

Wheel front

Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"

Wheel rear

Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"

Skewer rear

Bontrager Switch thru axle, removable lever

Tyre

Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40"

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tyre size

Frame: 29x2.40", Fork: See manufacturer

E-system

Battery

SRAM AXS battery pack (with charger)

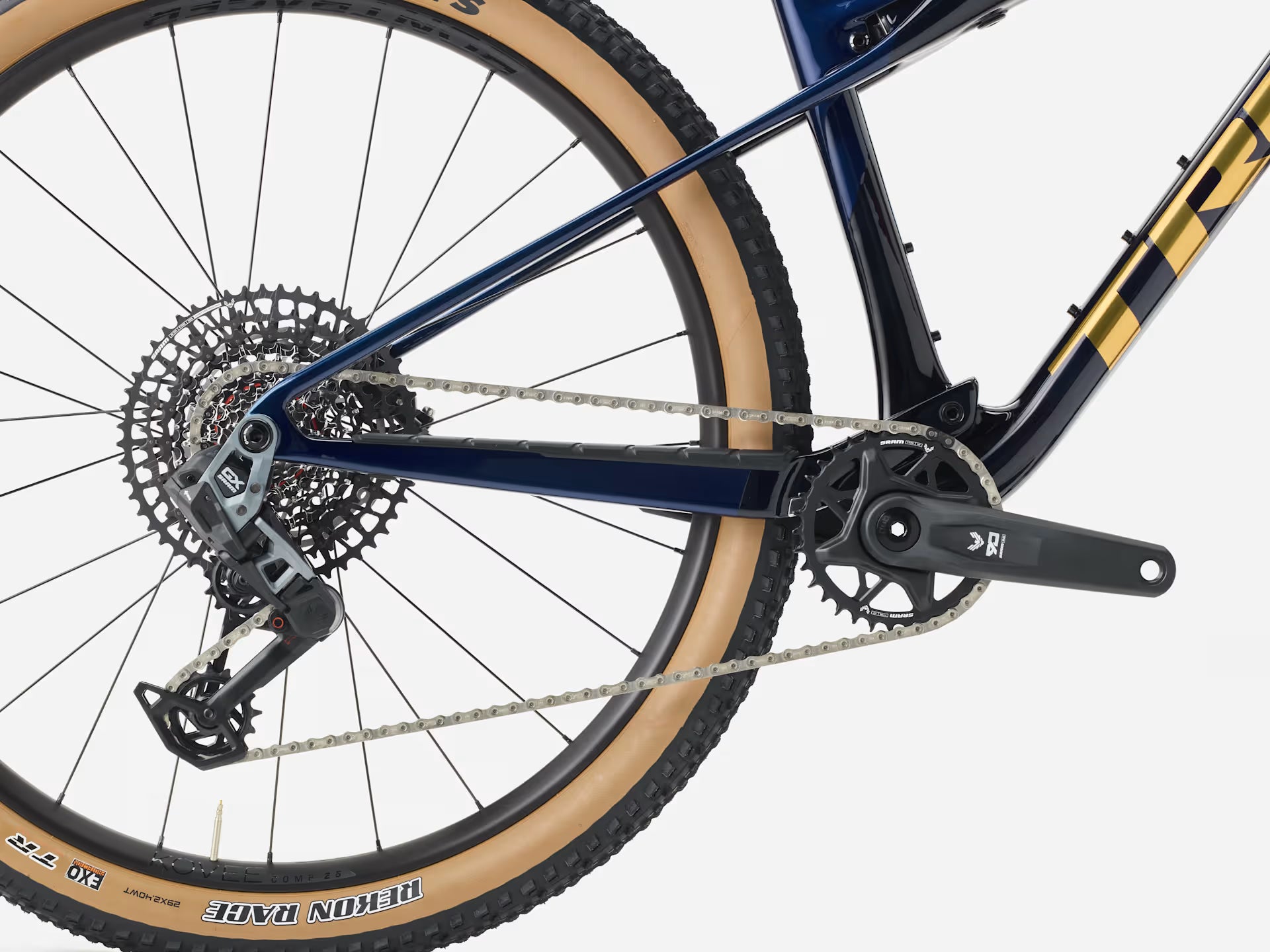

Drivetrain

Shifter

SRAM AXS pod

Rear derailleur

SRAM GX Eagle AXS, T-Type

*Crank

Size: S, M, ML

Sram Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 170 mm length

Size: L, XL

Sram Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 175 mm length

Bottom bracket

SRAM DUB, 92 mm, PressFit

Cassette

SRAM Eagle XS-1275, T-Type, 10-52, 12-speed

Chain

SRAM GX Eagle, T-Type, 12-speed

Max. chainring size

1x: 38T, min 30T

Components

Saddle

Verse Short Elite, hollow magnesium rails, 145 mm width

*Seatpost

Size: S

Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length

Size: M, ML, L

Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length

Size: XL

Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length

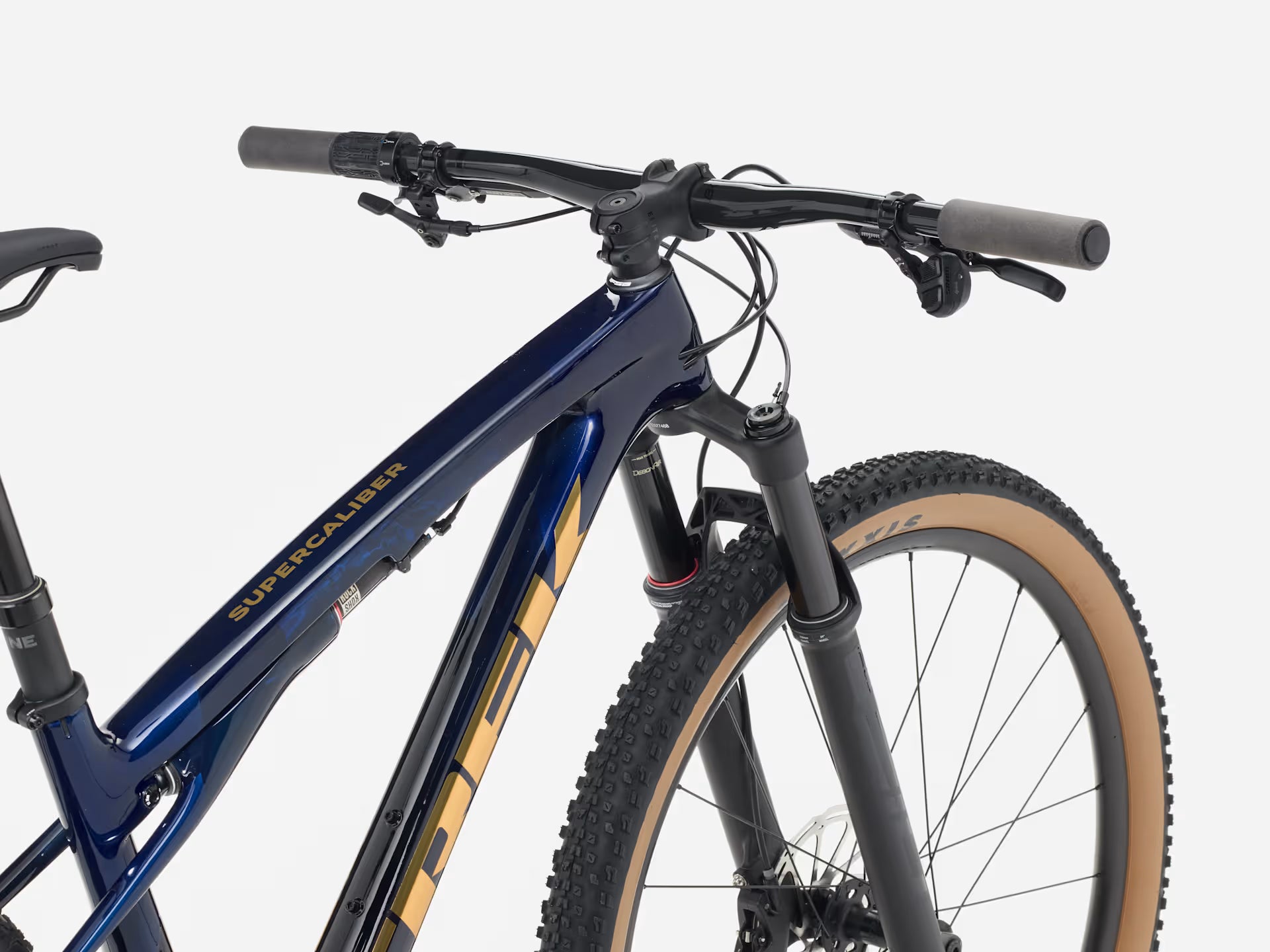

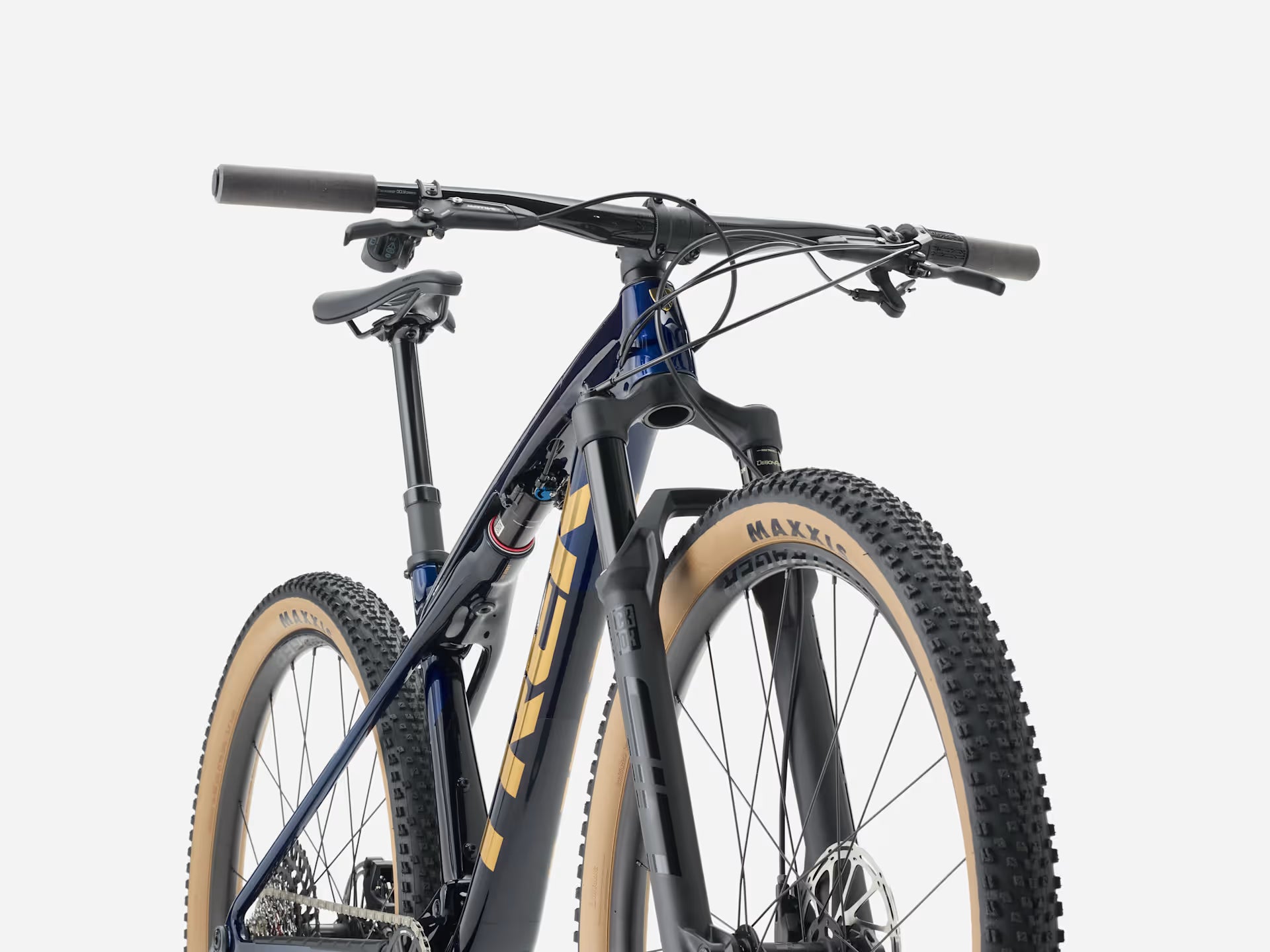

*Handlebar

Size: S

Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width

Size: M, ML, L, XL

Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width

*Stem

Size: S, M

Bontrager Elite, 35 mm, 13-degree, 60 mm length

Size: ML

Bontrager Elite, 35 mm, 13-degree, 70 mm length

Size: L

Bontrager Elite, 35 mm, 13-degree, 80 mm length

Size: XL

Bontrager Elite, 35 mm, 13-degree, 90 mm length

Head set

FSA IS-2, 1-1/8" top, 1.5" bottom

Brake

SRAM Motive Bronze Stealth 4-Piston hydraulic disc

*Brake rotor

Size: S, M, ML, L, XL

SRAM CentreLine, 6-bolt, round-edge, 180 mm

Size: S, M, ML, L, XL

SRAM CenterLine, 6-bolt, round-edge, 160 mm

Rotor size

Max brake rotor sizes - Frame: 160 mm

Accessories

Tool

Bontrager Switch Lever, w/tool

Weight

Weight

M - 12.18 kg / 26.86 lbs (with TLR sealant, no tubes)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
