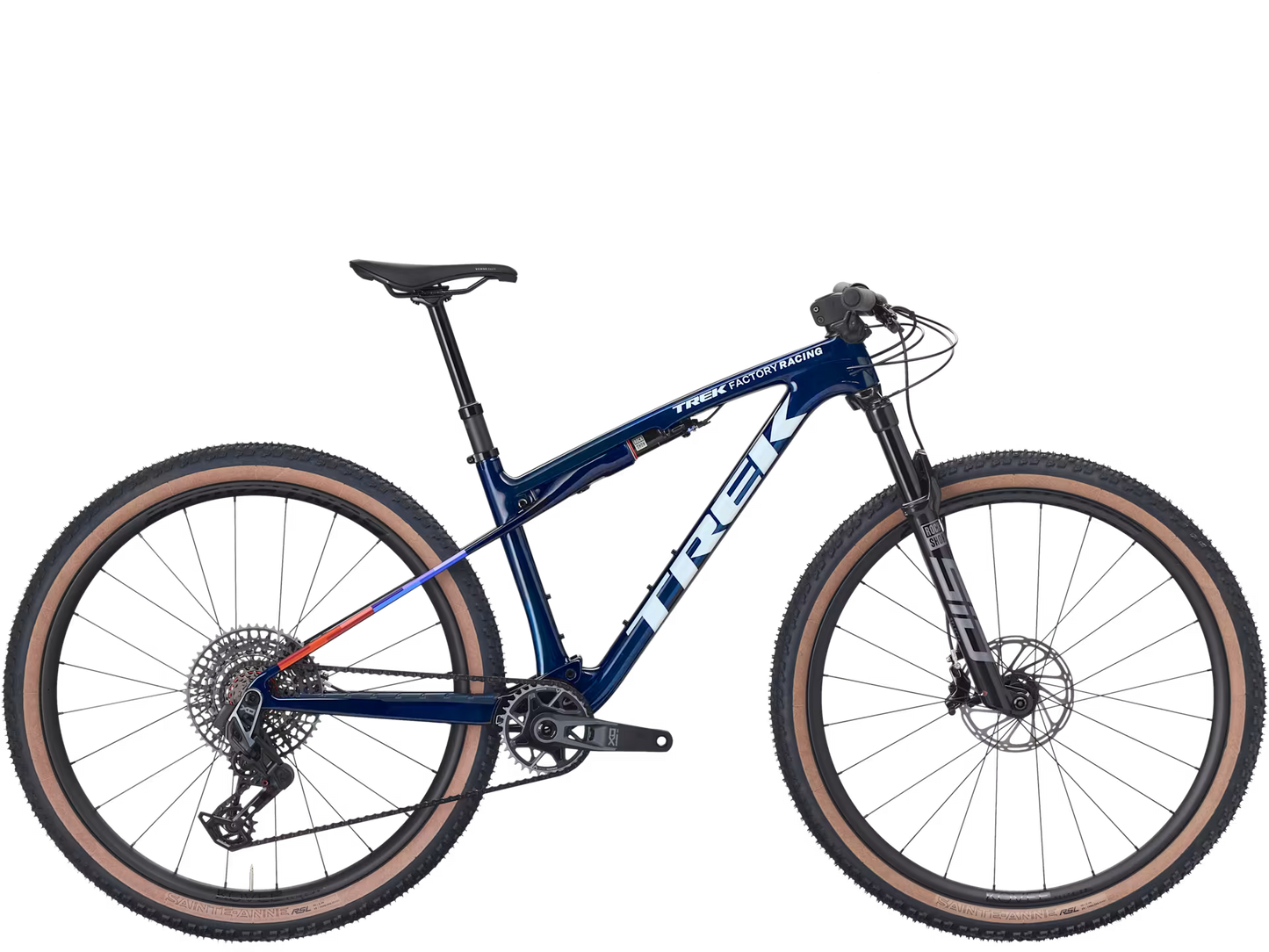

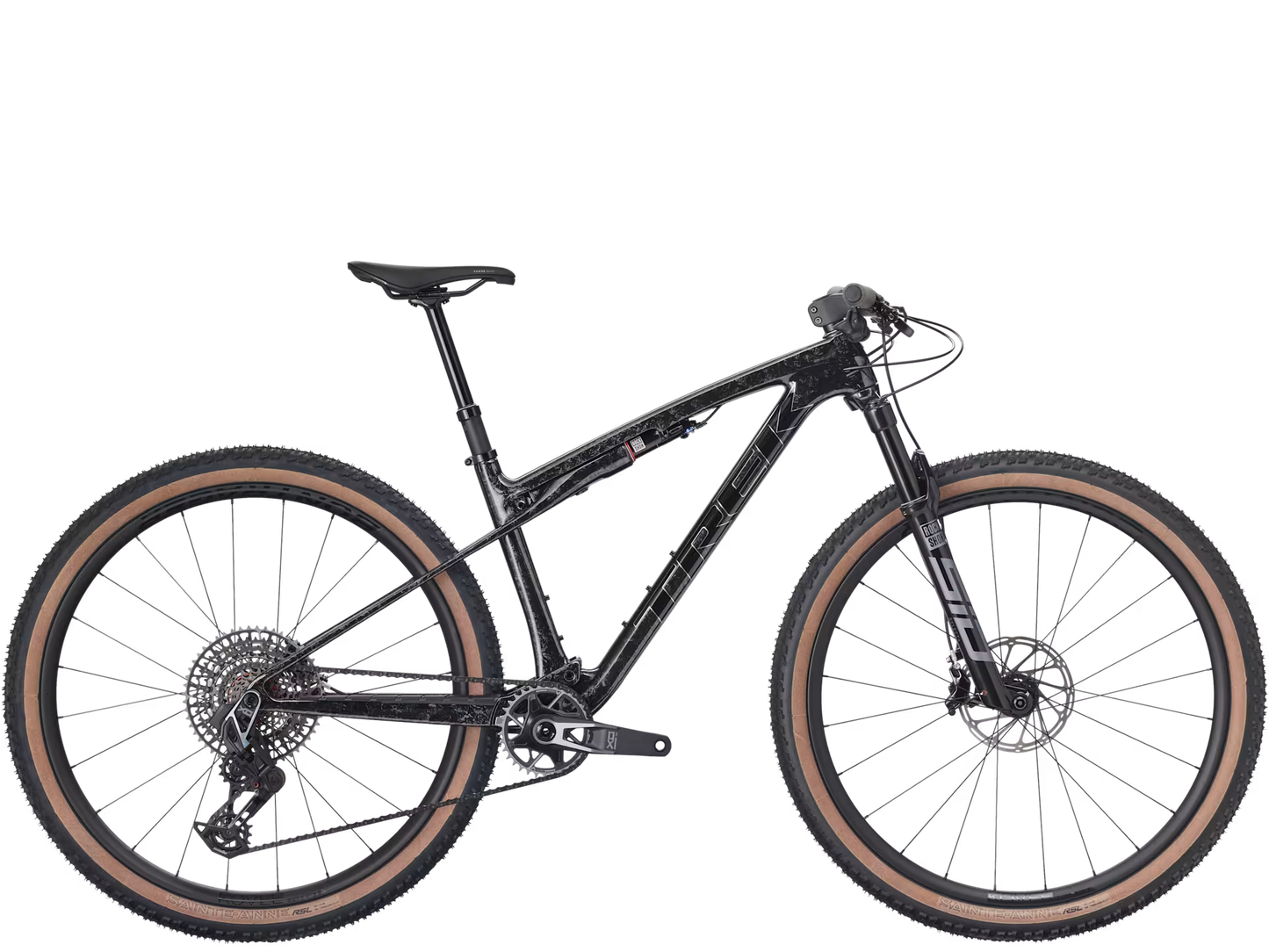

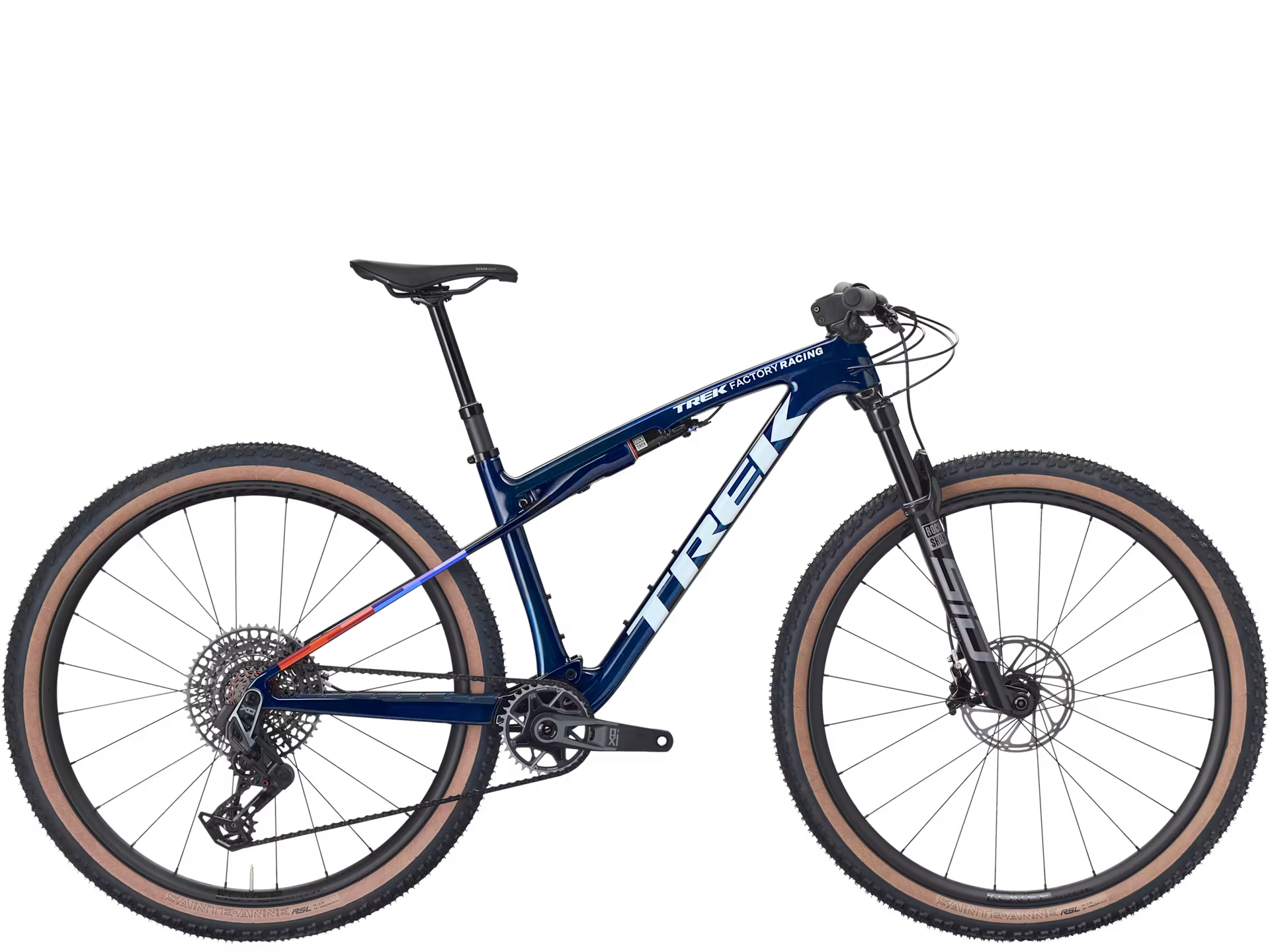

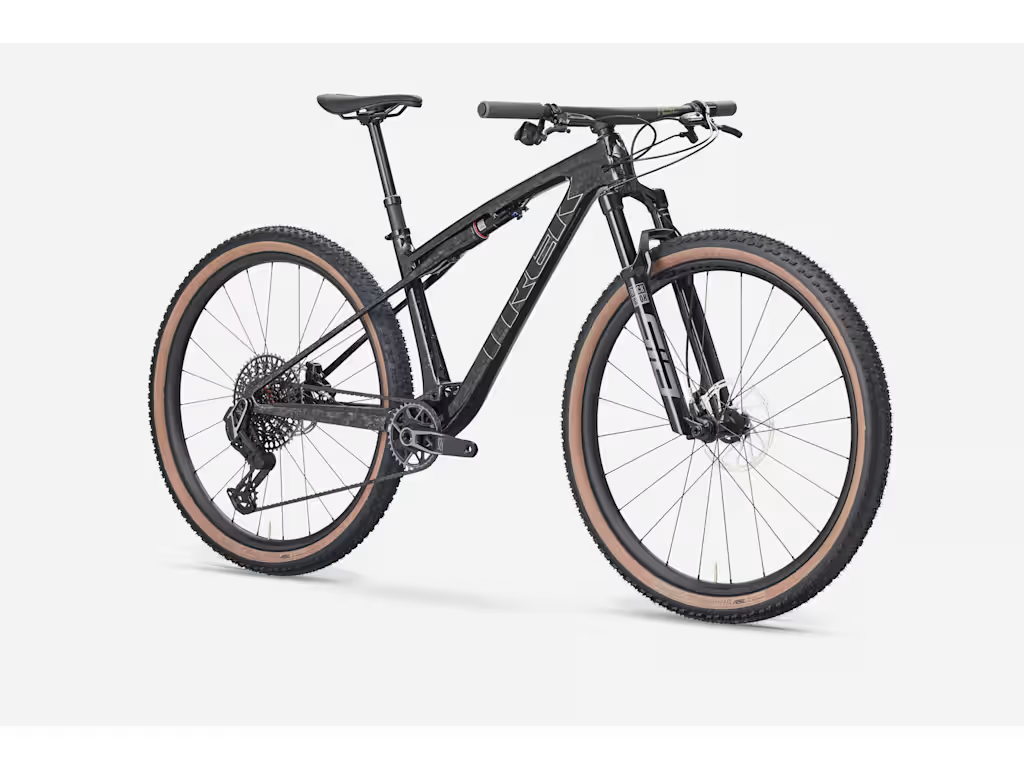

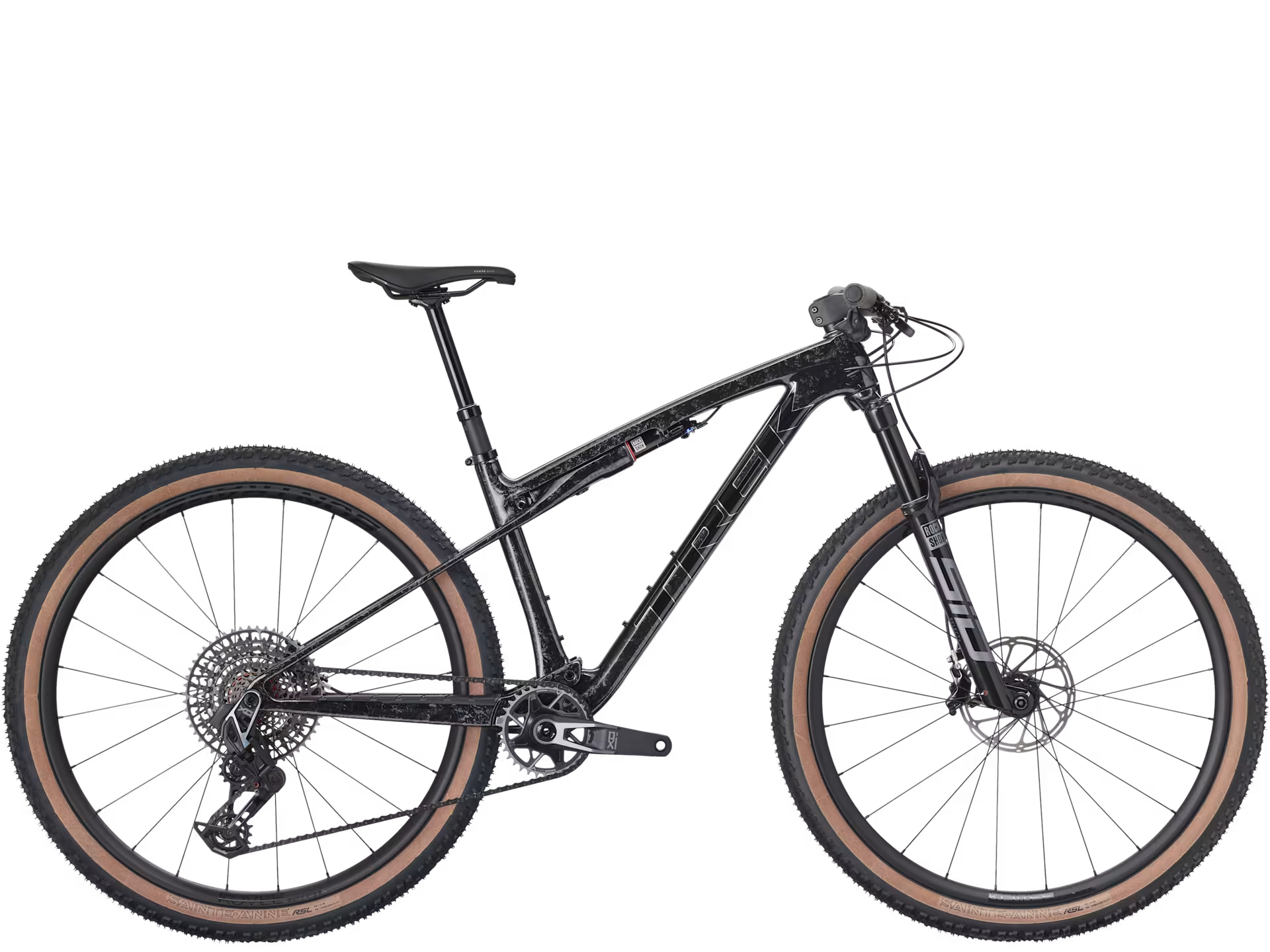

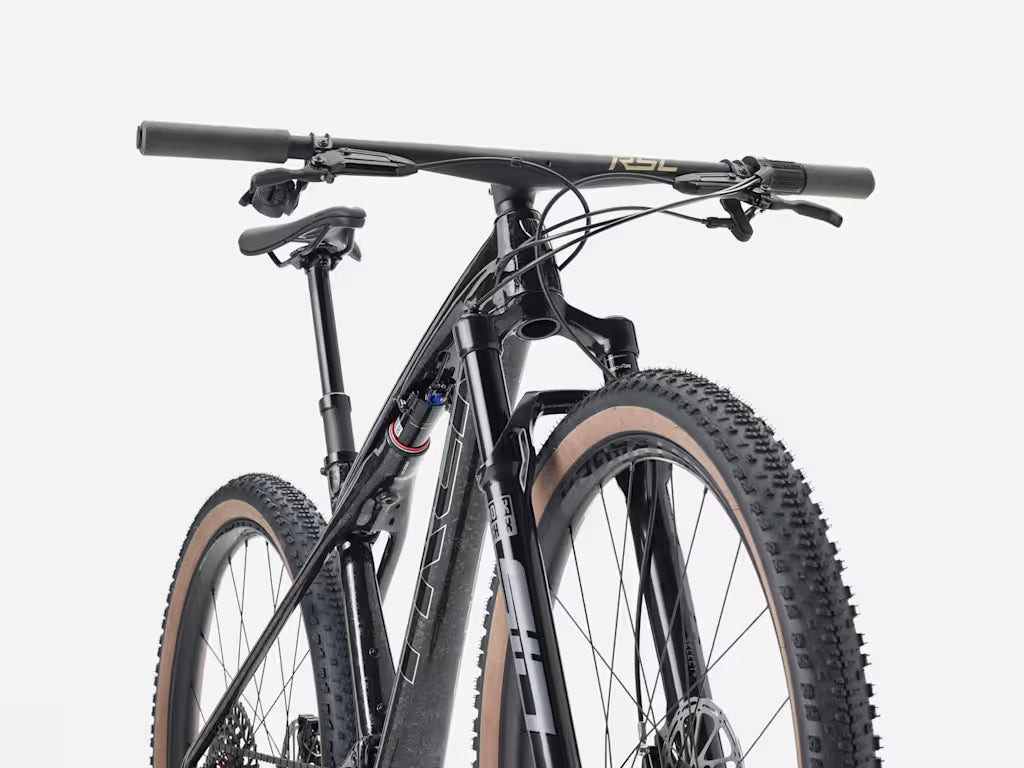

Trek Supercaliber SLR 9.8 XO AXS

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame

SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel

Fork

RockShox SID Select+, DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel

Shock

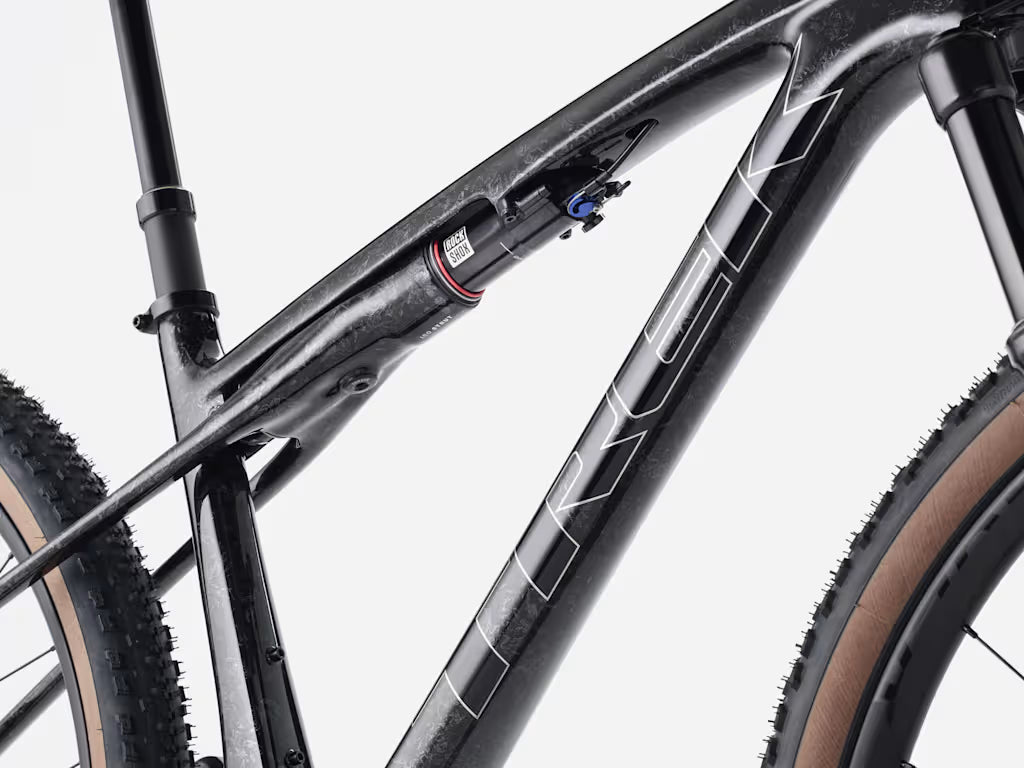

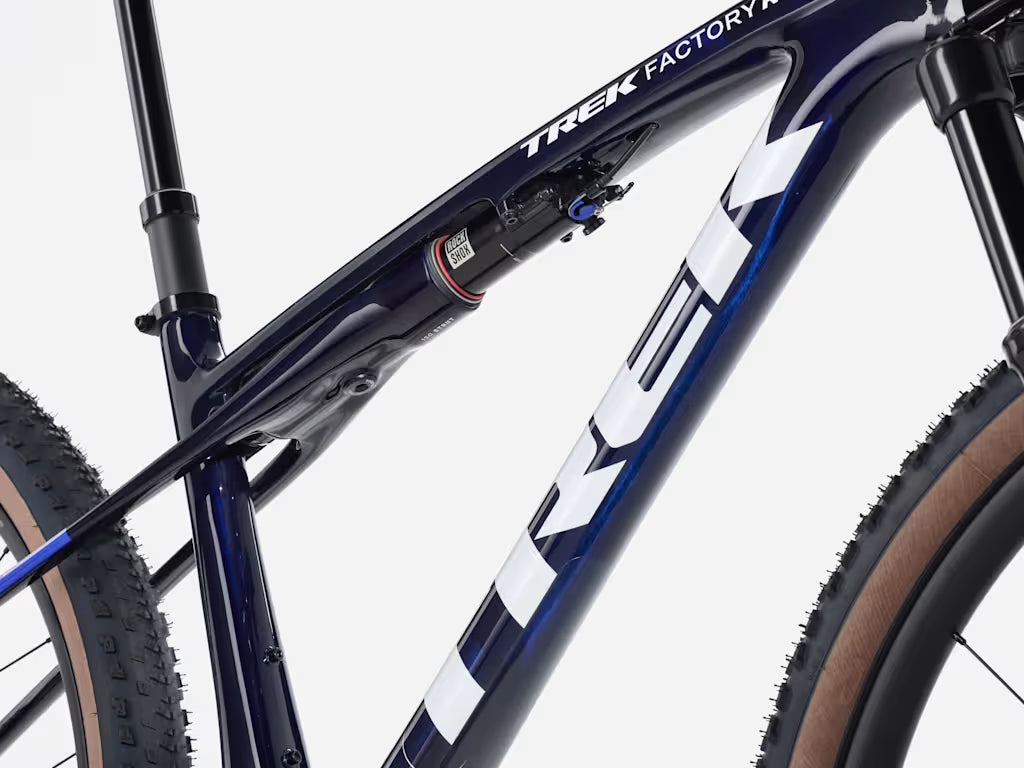

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper

Wheels

Wheel front

Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

Wheel rear

Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"

Skewer rear

Bontrager Switch thru axle, removable lever

Tyre

Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tyre size

Frame: 29x2.40", Fork: See manufacturer

E-system

Battery

SRAM AXS battery pack (with charger)

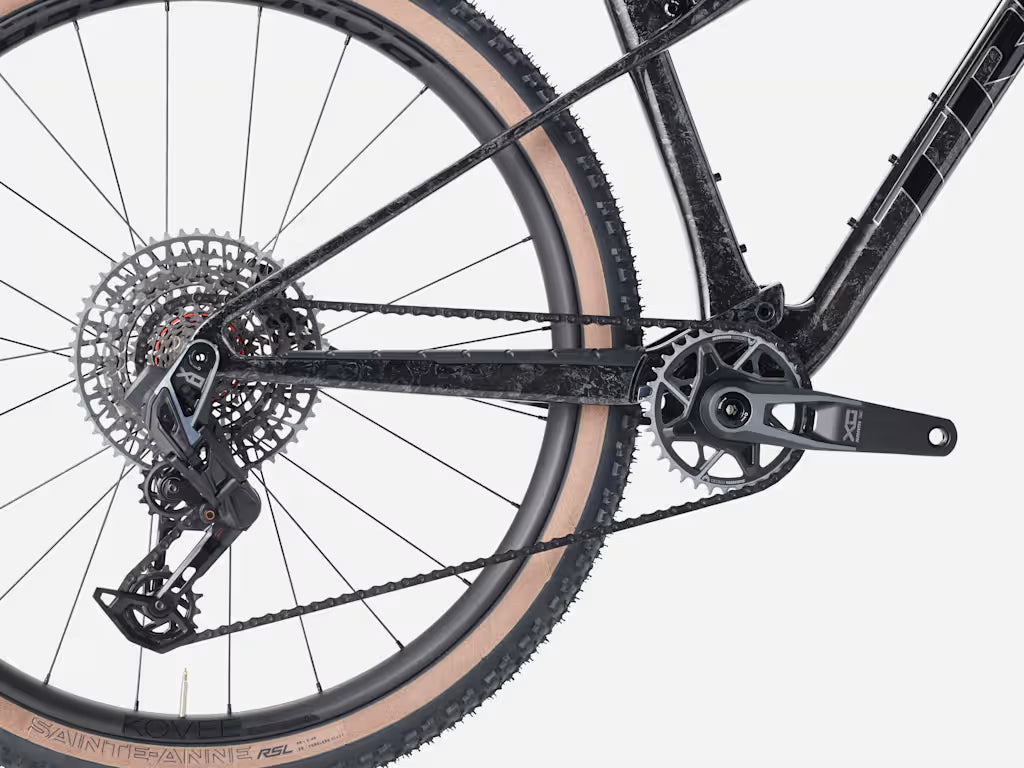

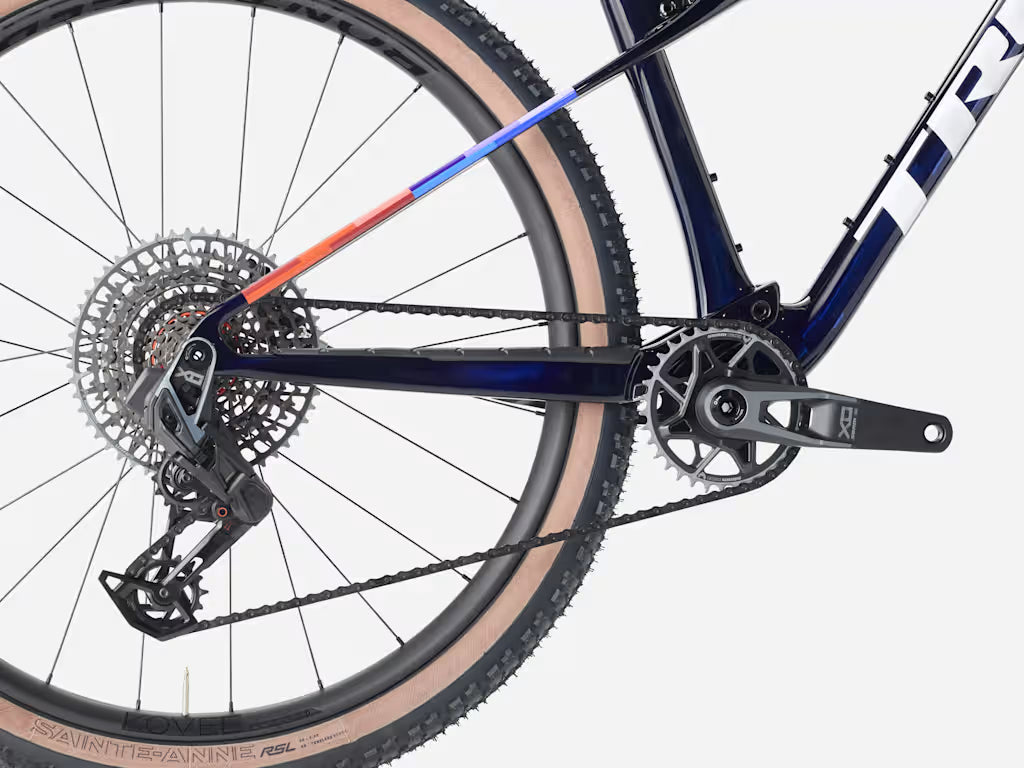

Drivetrain

Shifter

SRAM AXS pod

Rear derailleur

SRAM X0 Eagle AXS, T-Type

*Crank

Size: S, M, ML

SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170 mm length

Size: L, XL

SRAM X0 Eagle, DUB, 30T steel, T-Type, 55 mm chainline, 175 mm length

Bottom bracket

SRAM DUB, 92 mm, PressFit

Cassette

SRAM Eagle XS-1295, T-Type, 10-52, 12-speed

Chain

SRAM X0 Eagle, T-Type, 12-speed

Max. chainring size

1x: 38T, min 30T

Components

Saddle

Verse Short Elite, hollow magnesium rails, 145 mm width

*Seatpost

Size: S

Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length

Size: M, ML, L

Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length

Size: XL

Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length

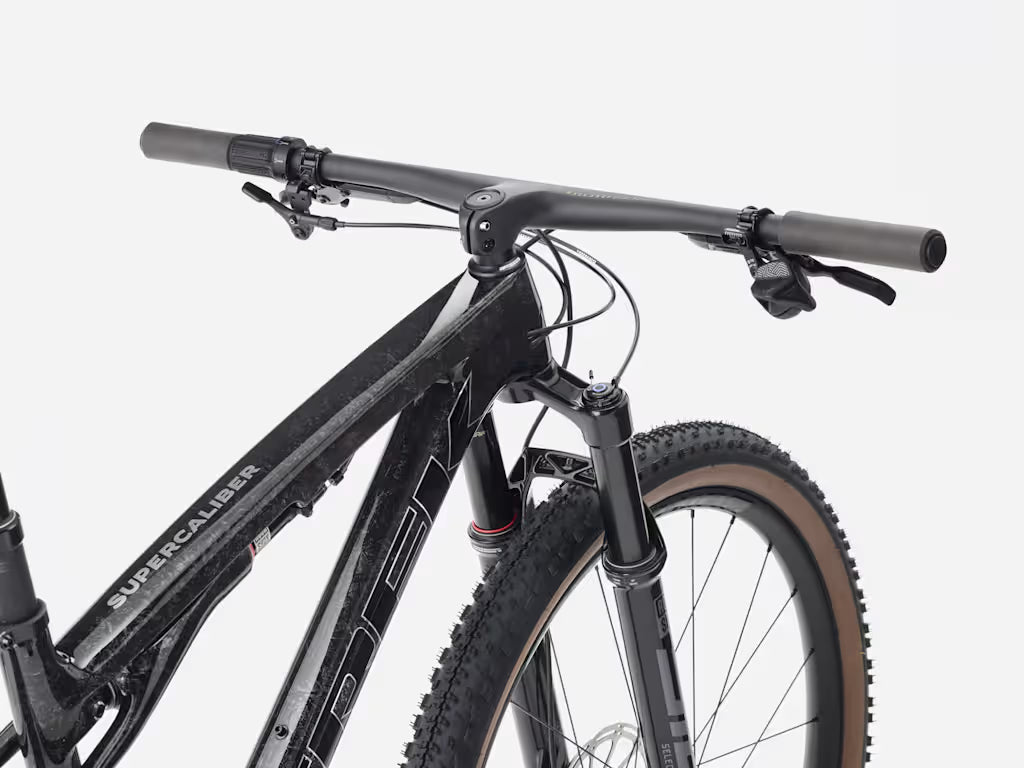

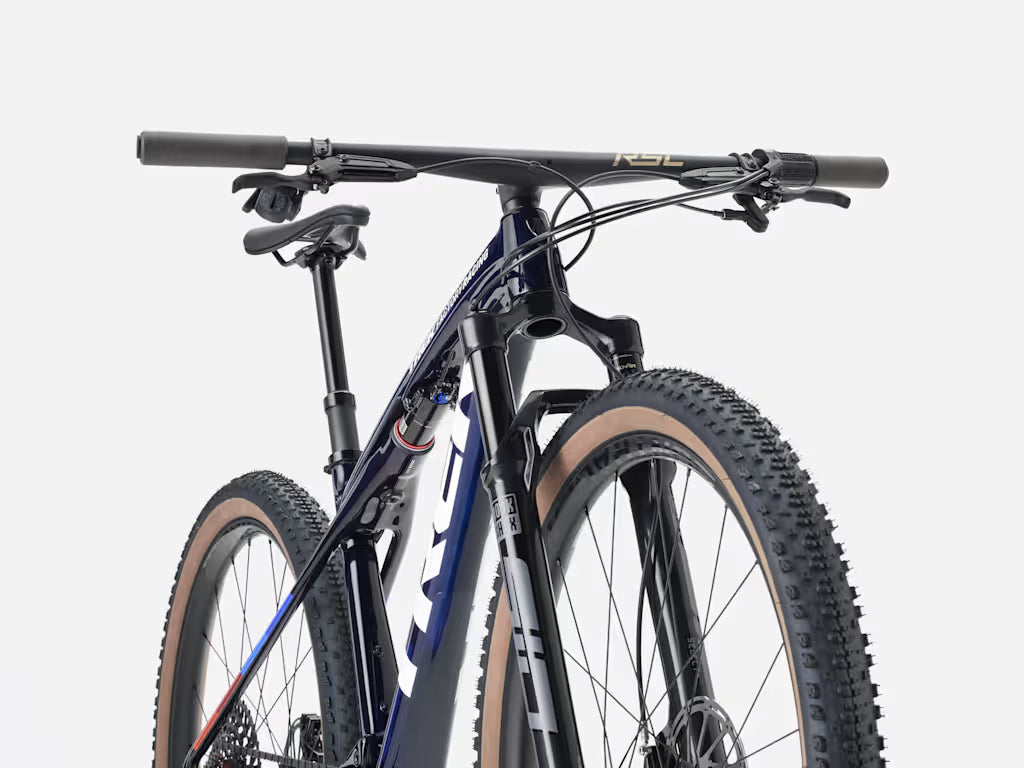

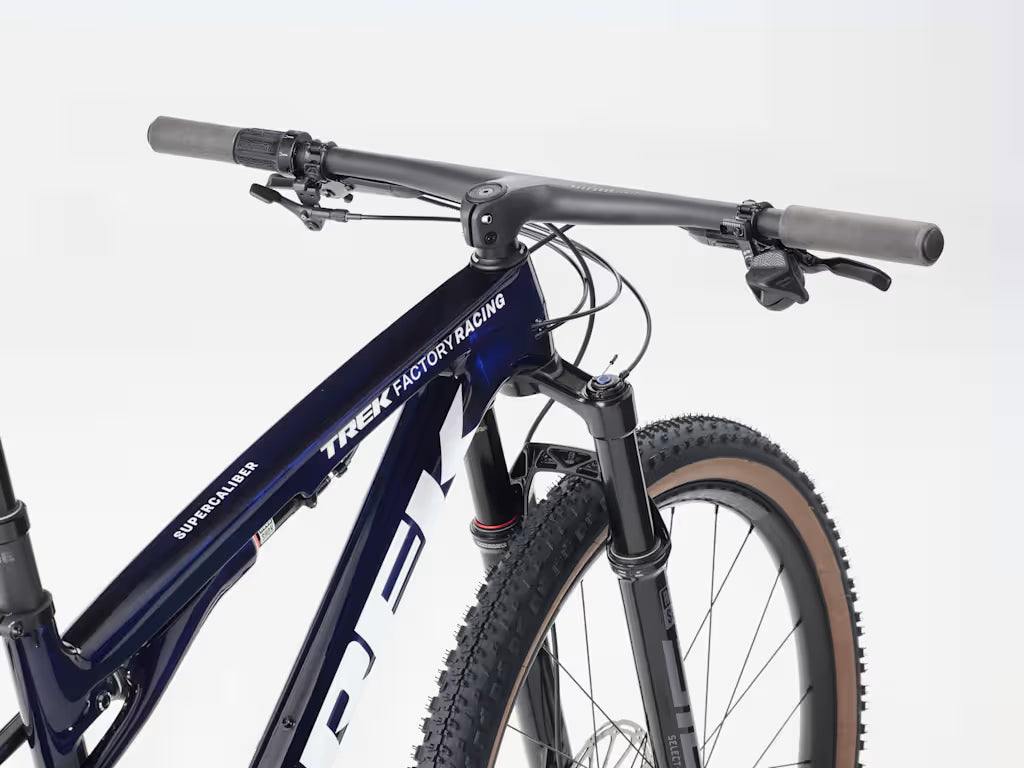

*Handlebar/stem (integrated)

Size: S, M, ML

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length

Size: L

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length

Size: XL

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length

Head set

FSA IS-2, 1-1/8" top, 1.5" bottom

Brake

SRAM Motive Silver 4-piston hydraulic disc

*Brake rotor

Size: S, M, ML, L, XL

SRAM CentreLine, 6-bolt, round-edge, 180 mm

Size: S, M, ML, L, XL

SRAM CenterLine, 6-bolt, round-edge, 160 mm

Rotor size

Max brake rotor sizes - Frame: 160 mm

Accessories

Tool

Bontrager Switch Lever, w/tool

Weight

Weight

M - 11.38 kg / 25.09 lbs (with TLR sealant, no tubes)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
